PD4NKPictures of inside the Icom IC-E2820
Was interested in the pinout of the controller/head cable (6 pin, of which 4 are used by the controller), because I assume it's serial with 8 volt. Couldn't see it without taking it fully apart unfortunately. And I don't want to break the thing (yet).
Note that the linked images are up to 0.5 megabyte in size each
Top

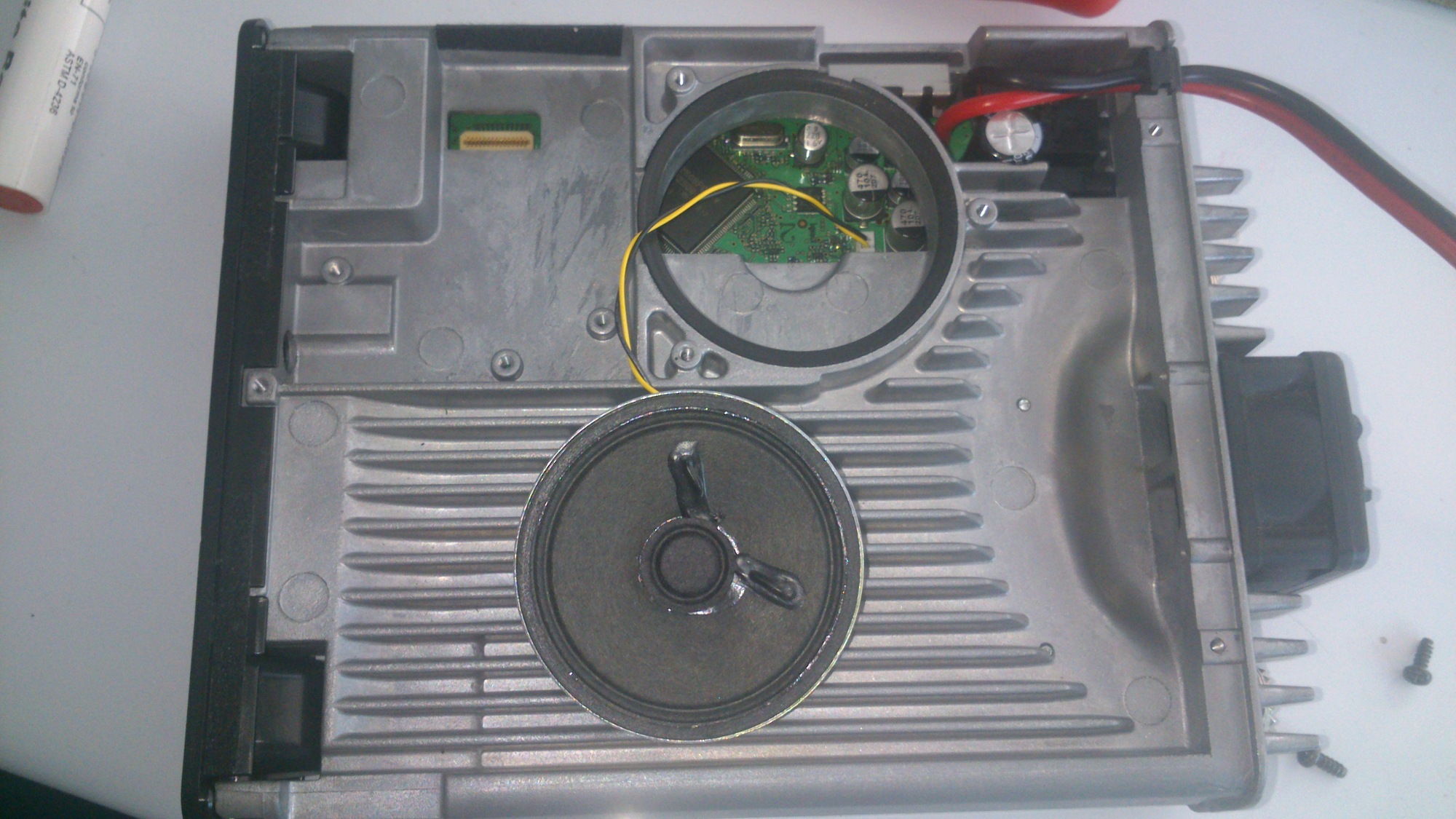

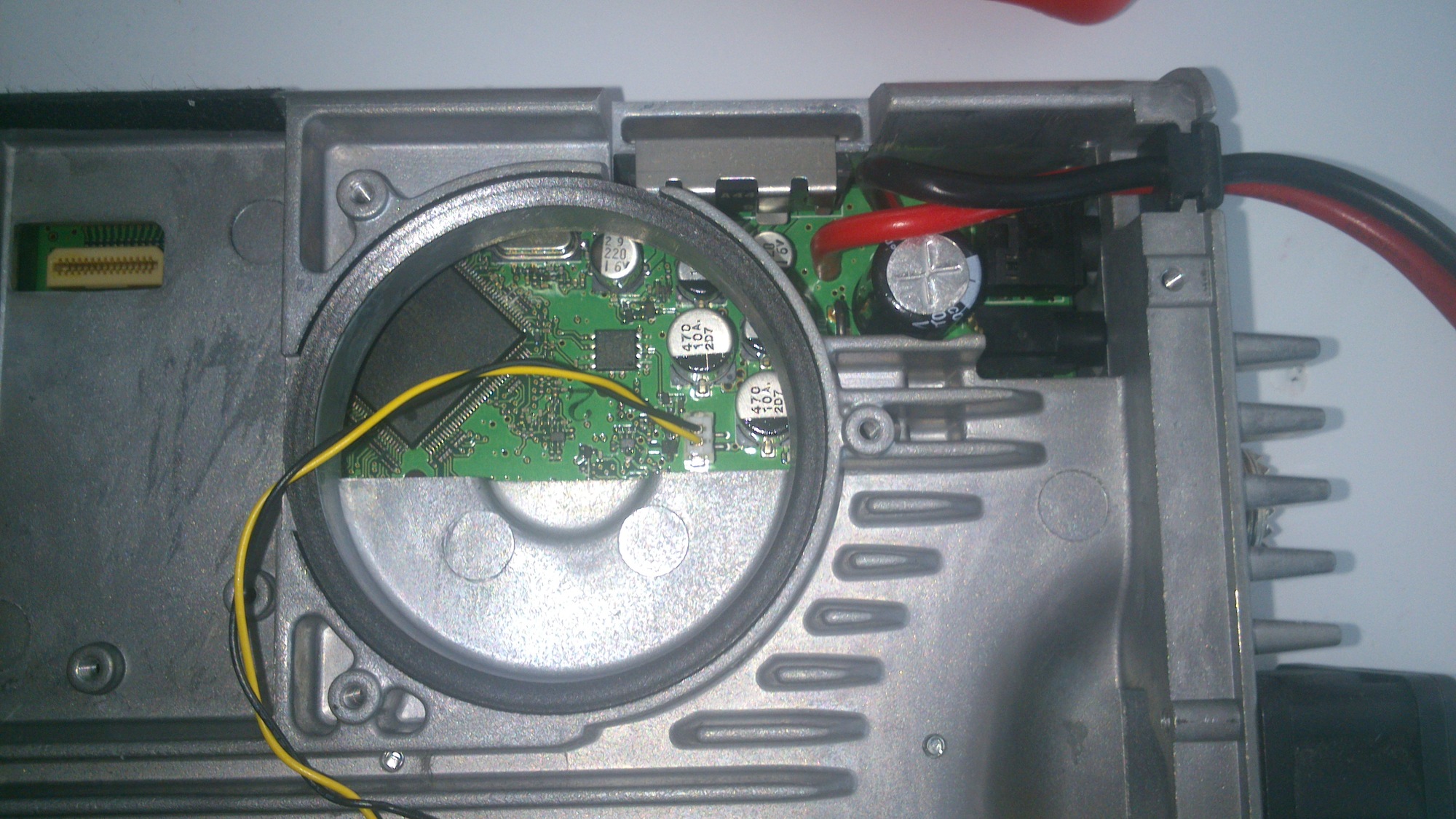

Top of the thing. Not much to see. The manual has instructions for taking the top cover off.
Take note when taking the top cover off that the speaker is not glued and is just held in place by the cover.
Bottom

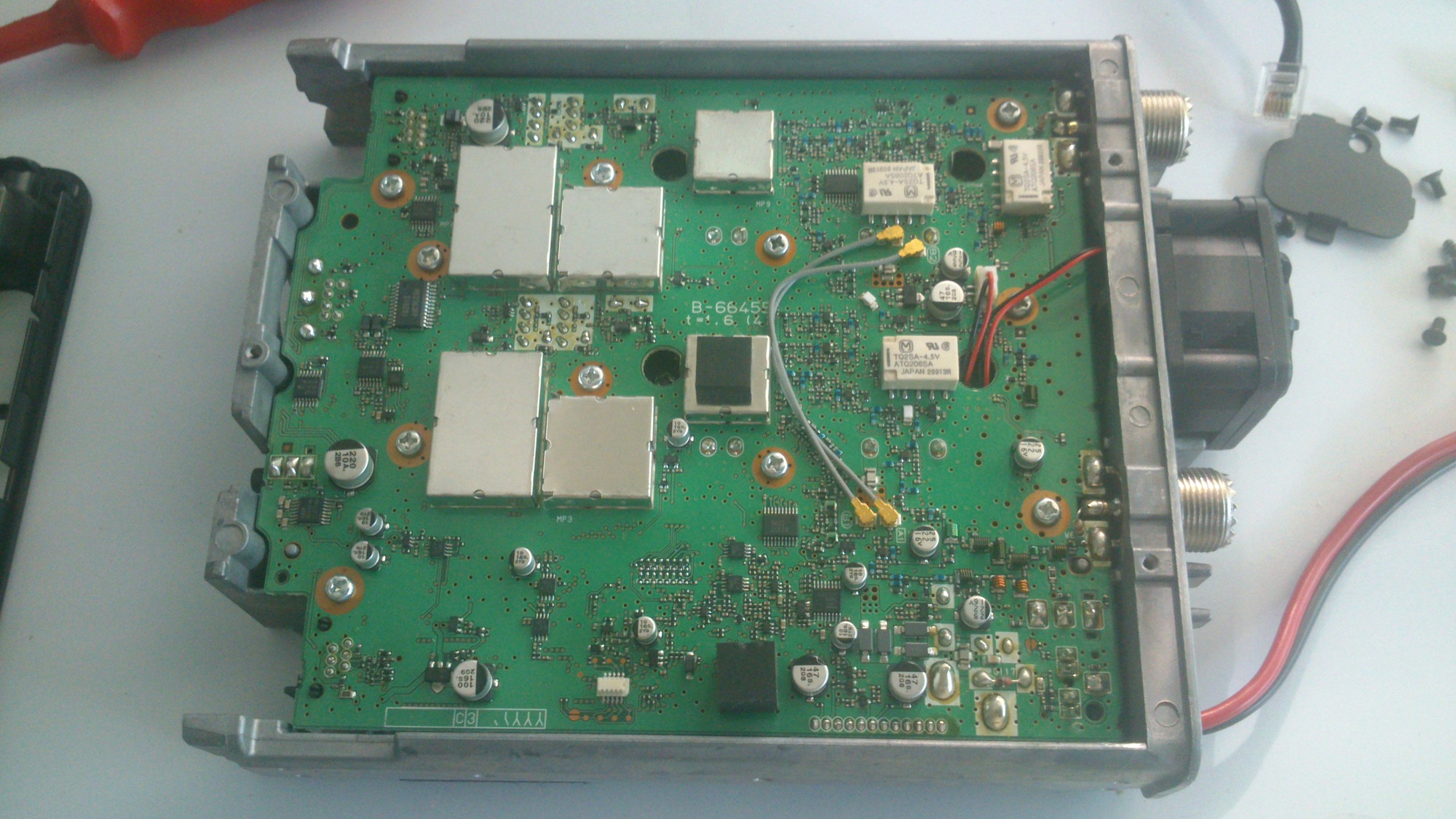

- Bottom

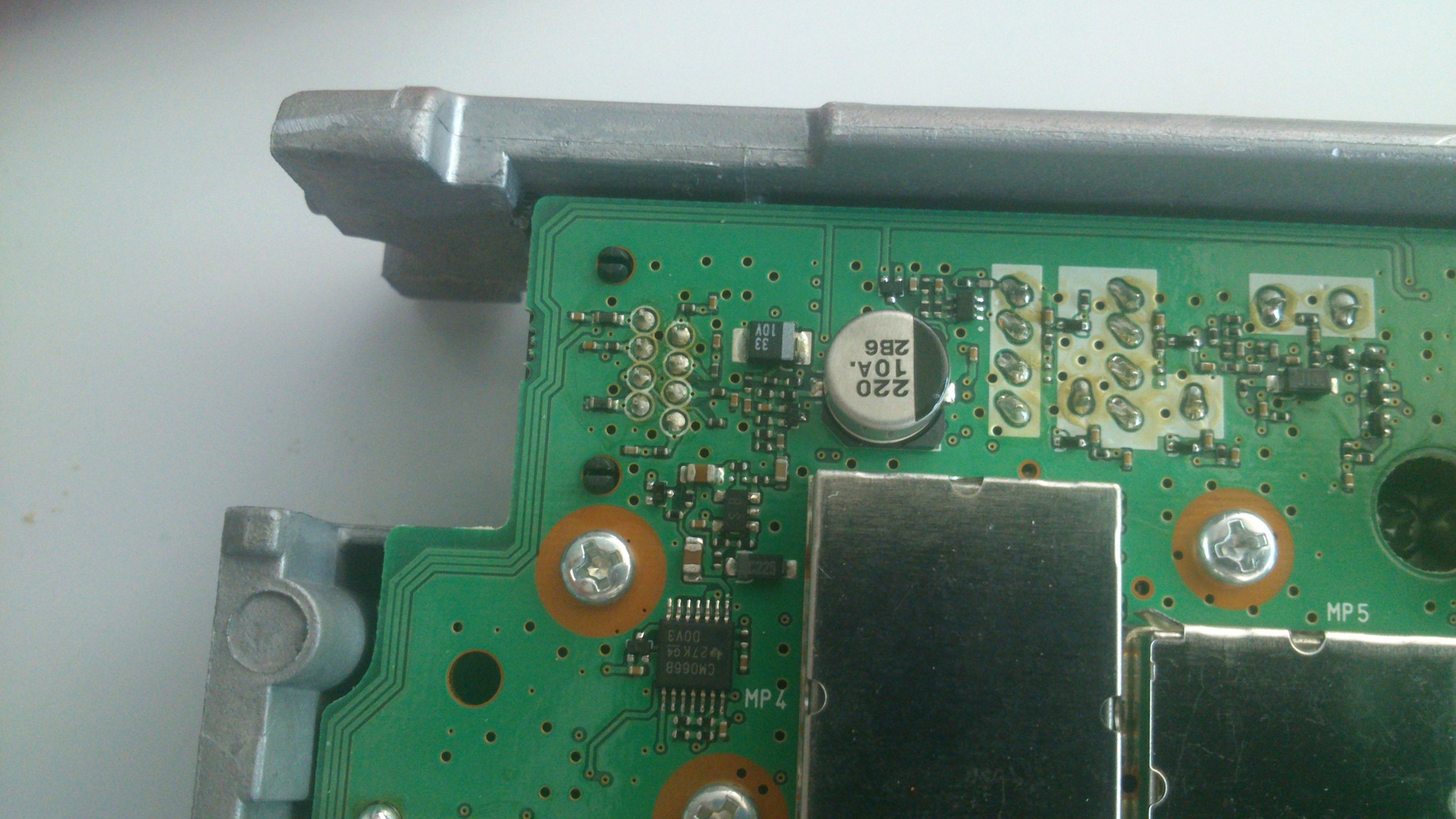

- Close up of the controller connector

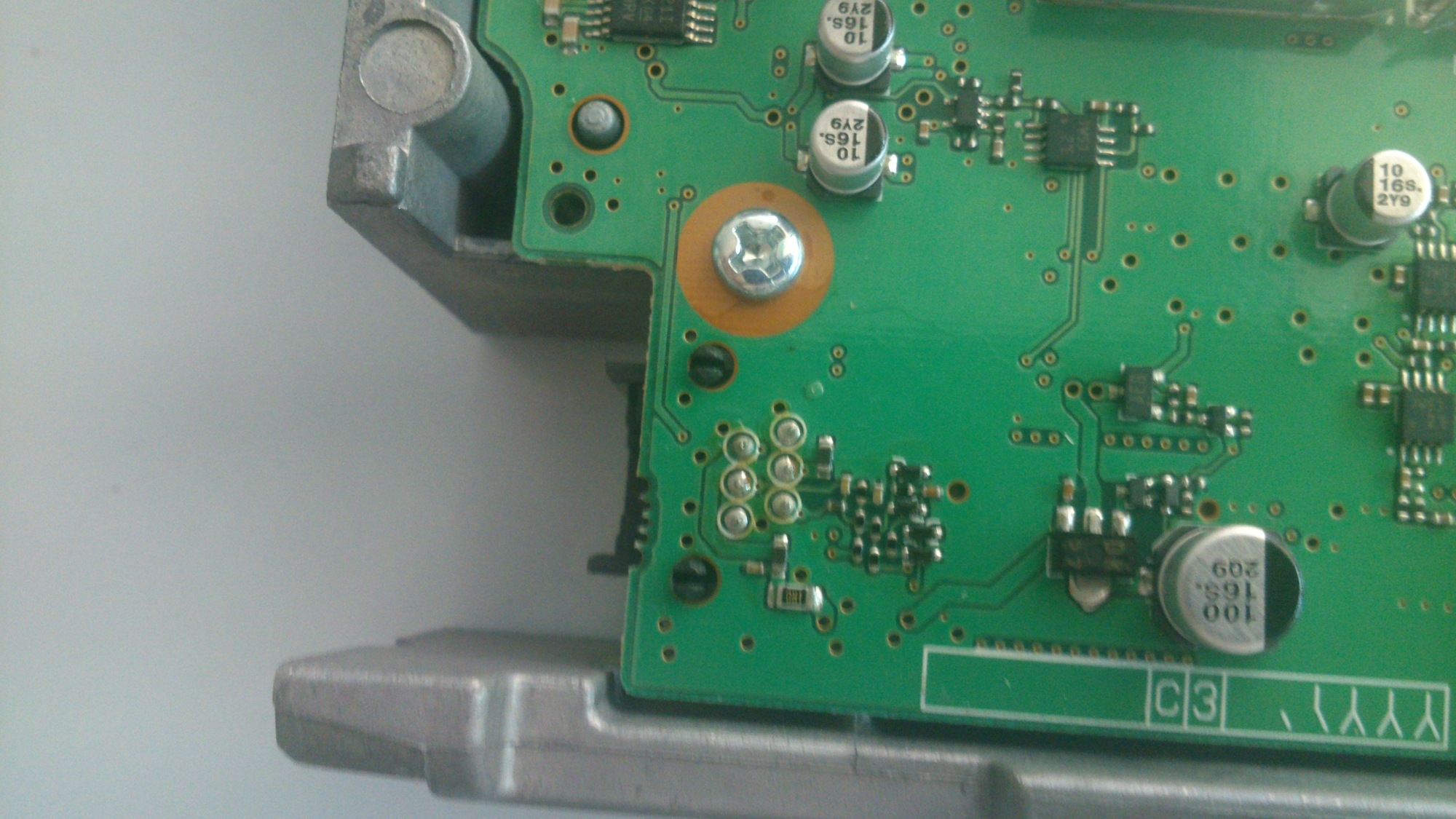

- Close up of the microphone connector

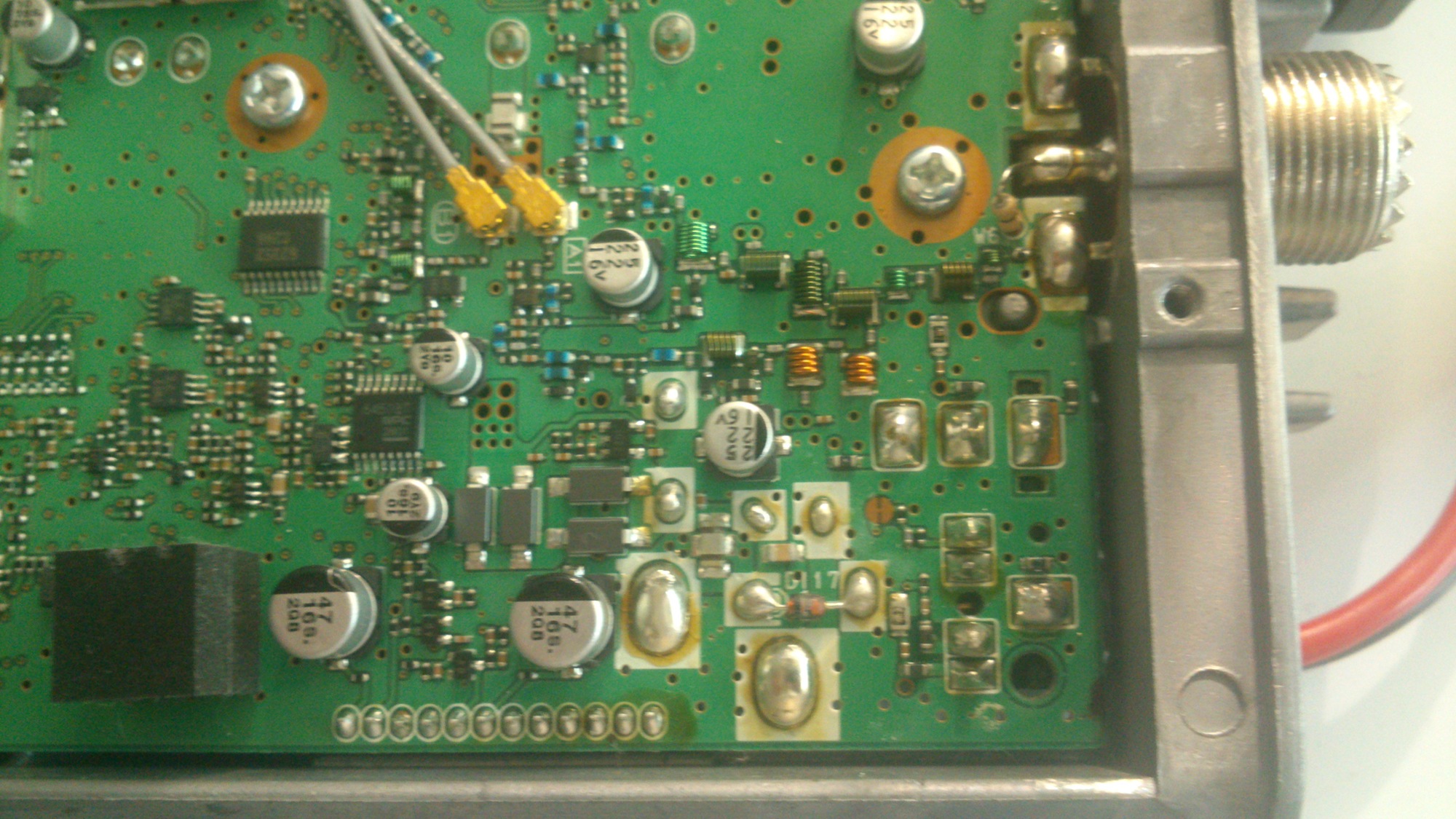

- Close up of back 1

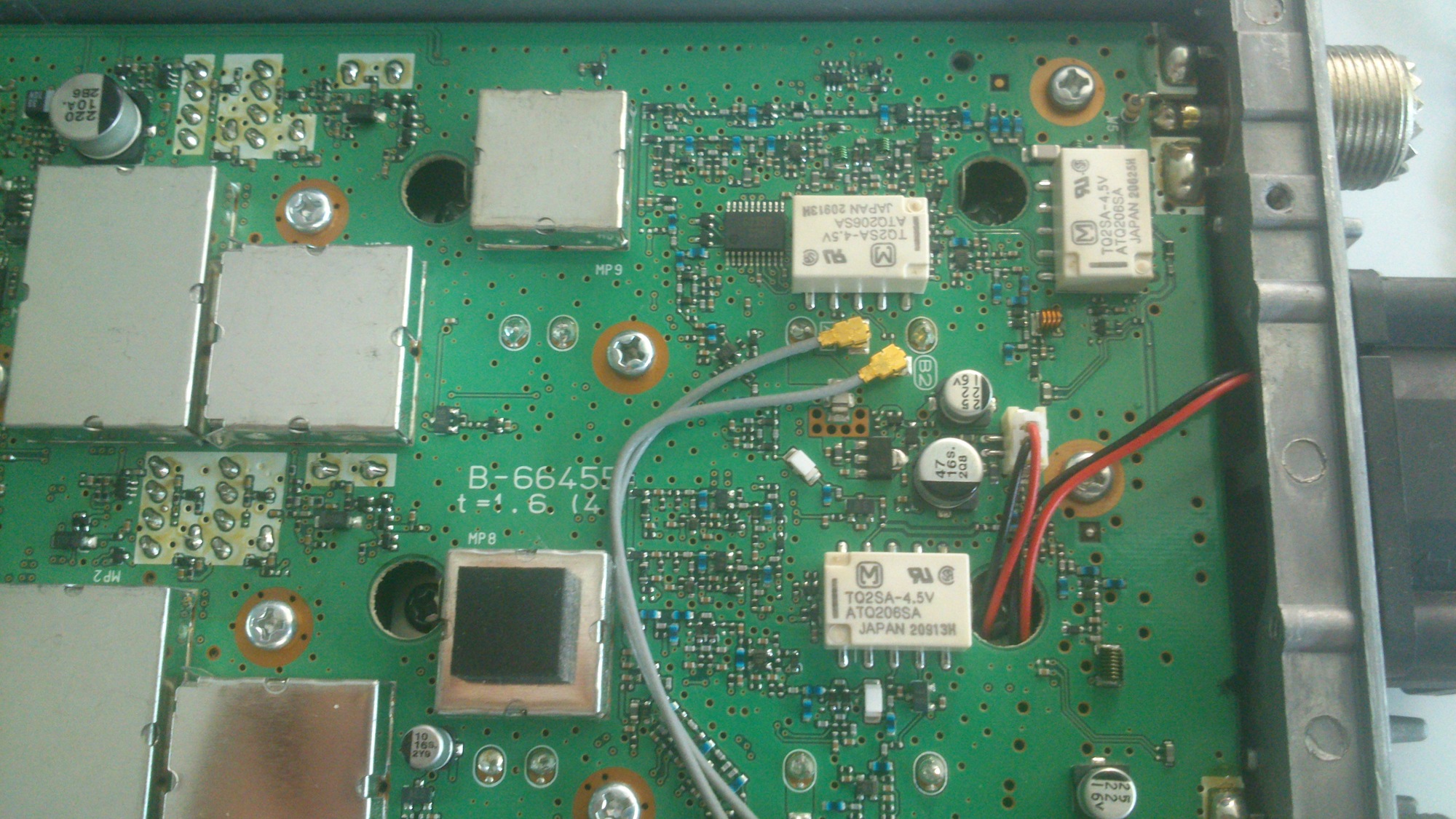

- Close up of back 2

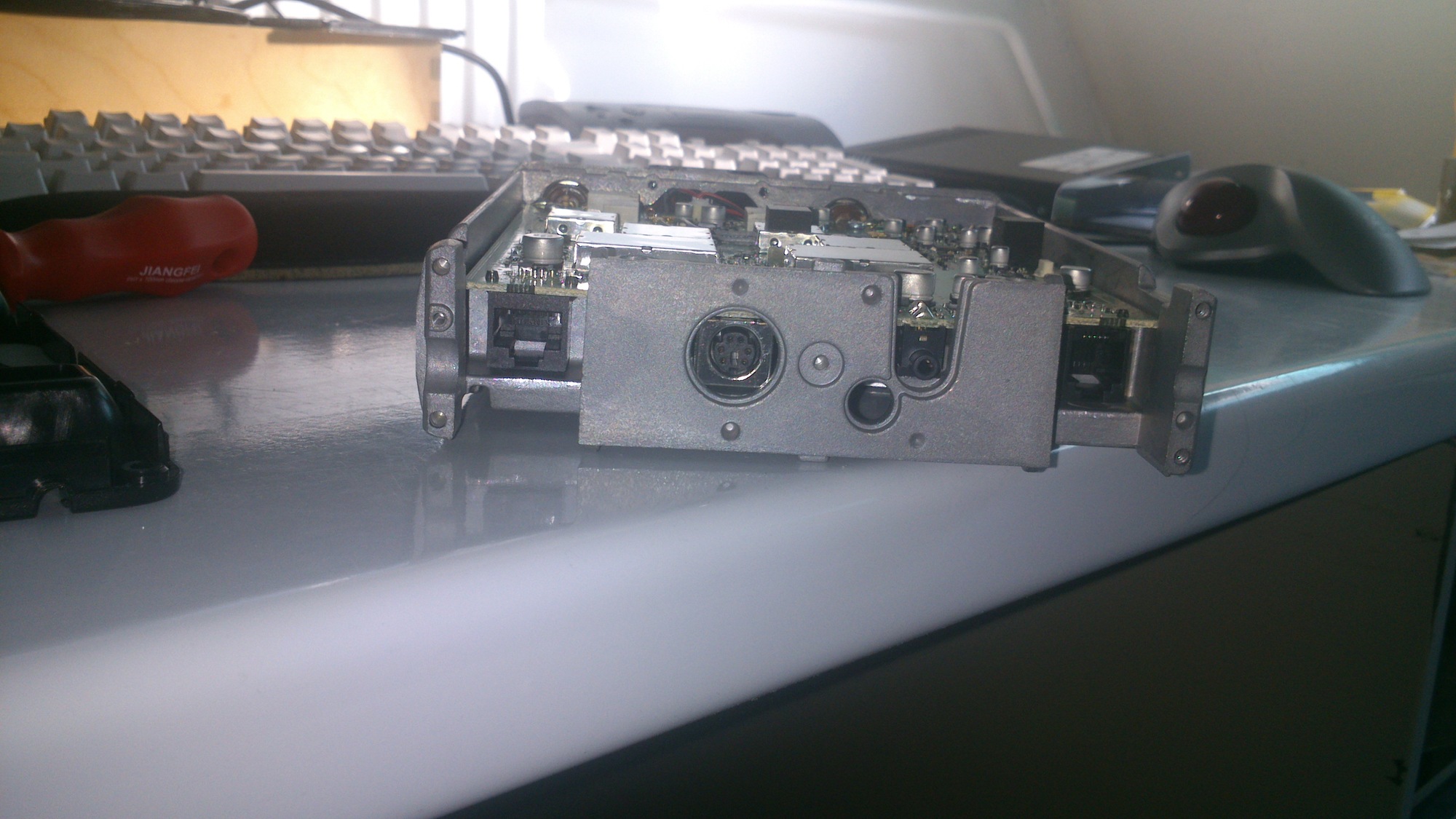

Front
Not much to see here. The panel is attached by five screws and clips on the top and bottom.
